Cisco Explorer 9865HDC High Definition DVR Receiver

Details

image of Cisco Explorer 9865HDC high definition DVR recevier front view


Receiver Capabilities HD Capable Up to 6 simultaneous DVR recordings Up to 946 hours of SD recording Up to 506 hours of HD recording Not compatible with external hard drive Notes: Estimated storage claim will vary with mix of HD and SD recordings. This equipment will take longer to load when rebooted. Allow 60 minutes when rebooting. The remote control required is based on the level of service.	Guide Version Cox TV or Contour

HD Capable

Up to 6 simultaneous DVR recordings

Up to 946 hours of SD recording

Up to 506 hours of HD recording

Not compatible with external hard drive

Notes:

Estimated storage claim will vary with mix of HD and SD recordings.
This equipment will take longer to load when rebooted. Allow 60 minutes when rebooting. The remote control required is based on the level of service.

Cox TV or Contour

Use the guides below for instructions on how to connect this receiver to a TV.

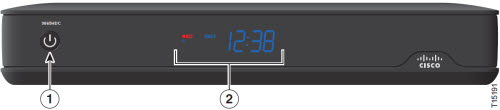

Cisco Explorer 9865HDC high definition DVR recevier front panel diagram showing Power button and LED display

Number	Description	Active
1	Power Button	Yes
2	LED Display which displays Recording indicator Power Indicator Video definition Time	Yes

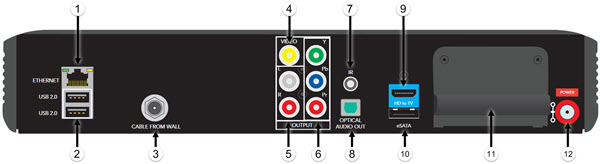

Cisco Explorer 9865HDC high definition DVR receiver back panel diagram showing cable, power, and audio / video connection ports

Number	Description	Active
1	Ethernet Port	TV Connectivity (UPNP Connection) - Yes Internet Connectivity - No
2	USB Ports	TV / Internet Connectivity - No +5VDC Power - Yes
3	Cable In	Yes
4	RCA Video Out	Yes
5	RCA Audio Out	Yes
6	Component Out	Yes
7	IR Port	Yes
8	Optical Audio Out	Yes
9	HD To TV	Yes
10	eSATA Port	N/A
11	CableCARD Slot	Yes
12	AC Power In	Yes
