Digital Tuning Adapter

Details

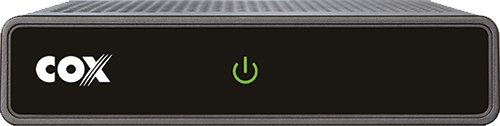

Cox Mini Box front view


Receiver Capabilities HD Capable Not compatible with external hard drive	Guide Version Interactive Guide

Receiver Capabilities

HD Capable

Not compatible with external hard drive

Guide Version

Interactive Guide

Installation Guides

Use the guides below for instructions on how to connect this receiver to a TV.

Connection Type	Video Cable Connected to TV
Standard Definition	Coax (PNG)
High Definition	HDMI (PNG)

Front View

Cox Mini Box front panel diagram

Click to enlarge.

Number	Description	Active
1	Power indicator	Yes

Back View

Cox Mini Box back panel diagram

Click to enlarge.

Number	Description	Active
1	Cable In	Yes
2	To TV	Yes
3	Channel 3 / 4 Switch	Yes
4	IR In	Yes
5	HDMI Out	Yes
6	Power In	Yes

Dimensions

Height: 1.00"
Width: 4.50"
Depth: 3.50"
