Pace XiD HD Receiver

Details

Pace XiD MOCA and IP HD Receiver front view


Receiver Capabilities HD Capable Supports up to a 30-minute pause, rewind, and fast forward of live TV Not compatible with external hard drive	Guide Version Contour

Receiver Capabilities

HD Capable

Supports up to a 30-minute pause, rewind, and fast forward of live TV

Not compatible with external hard drive

Guide Version

Contour

Installation Guides

Use the guides below for instructions on how to connect this receiver to a TV.

Connection Type	Video Cable Connected to TV
Standard Definition	Coax (PNG)
High Definition	HDMI (PNG)

Front View

Pace XiD MOCA and IP HD Receiver front panel diagram showing Power button and LED light

Click to enlarge.

Number	Description	Active
1	IR Sensor	Yes
2	Power button	Yes Note: When pressed, the receiver goes into Power Save mode. It does not turn the receiver off.
3	LED	Yes

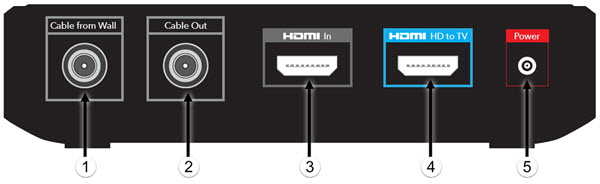

Back View

Pace XiD MoCA and IP HD receiver back panel diagram showing cable, power, and audio / video connection ports

Click to enlarge.

Number	Description	Active
1	Cable In	Yes
2	Cable Out	Yes
3	HDMI In	No
4	HDMI Out	Yes
5	Power In	Yes

Dimensions

Height: 1.20"
Width: 5.3"
Depth: 3.4"

XG1 TV Boxes

Device Status	Power Light or LED Activity
Power save mode	Off
Loading or restarting	Power light solid; LEDs blinking
Steady or no activity	Power light solid
Remote control activity	Green LED flashes when button pressed
Recording in progress	Red LED Solid

XiD and XG2 TV Boxes

Device Status	Power Light
Power save mode	Off
Loading or Restarting	Slow blinking
Steady or no activity	Solid
Remote control activity	Flaring
