Technicolor XiD HD Receiver

Details

image of Pace XiD MOCA and IP HD Receiver front view

Receiver Capabilities HD Capable Supports up to a 30-minute pause, rewind, and fast forward of live TV Not compatible with external hard drive	Guide Version Contour

Receiver Capabilities

HD Capable

Supports up to a 30-minute pause, rewind, and fast forward of live TV

Not compatible with external hard drive

Guide Version

Contour

Installation Guides

Use the guides below for instructions on how to connect this receiver to a TV.

Connection Type	Video Cable Connected to TV
Standard Definition	Coax (PNG)
High Definition	HDMI (PNG)

Front View

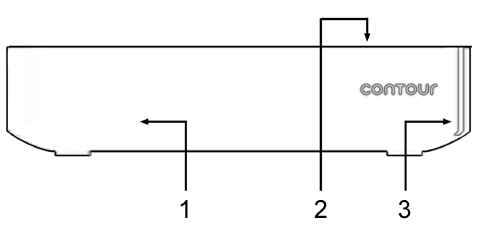

image of Pace XiD MOCA and IP HD Receiver front panel diagram showing Power button and LED light

Click to enlarge.

Number	Description	Active
1	IR Sensor	Yes
2	Power button	Yes - Does not turn the receiver off. See Turning a Contour 2 Receiver On and Off for details.
3	LED	Yes

Back View

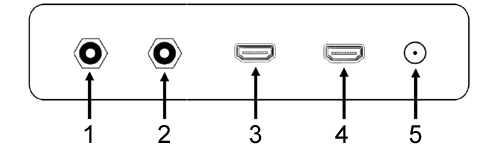

image of Pace XiD MoCA and IP HD receiver back panel diagram showing cable, power, and audio / video connection ports

Click to enlarge.

Number	Description	Active
1	Cable In	Yes
2	Cable Out	Yes
3	HDMI In	No
4	HDMI Out	Yes
5	Power In	Yes

Dimensions

Height: 1.26"
Width: 5.30"
Depth: 3.40"
